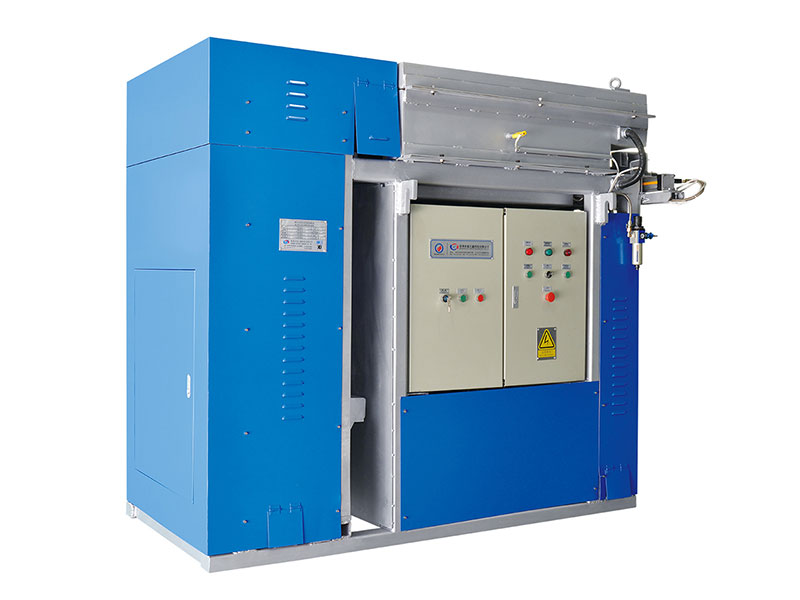

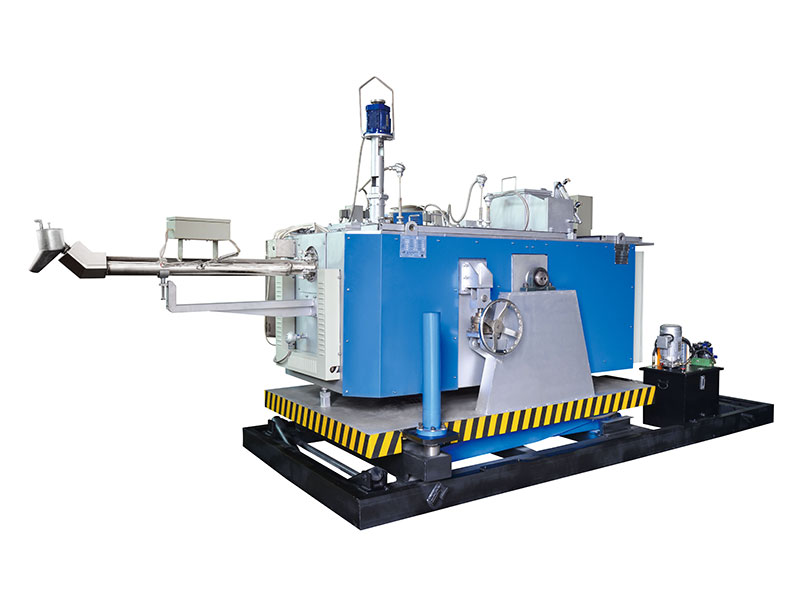

DMD-J magnesium alloy furnace

Structural system:

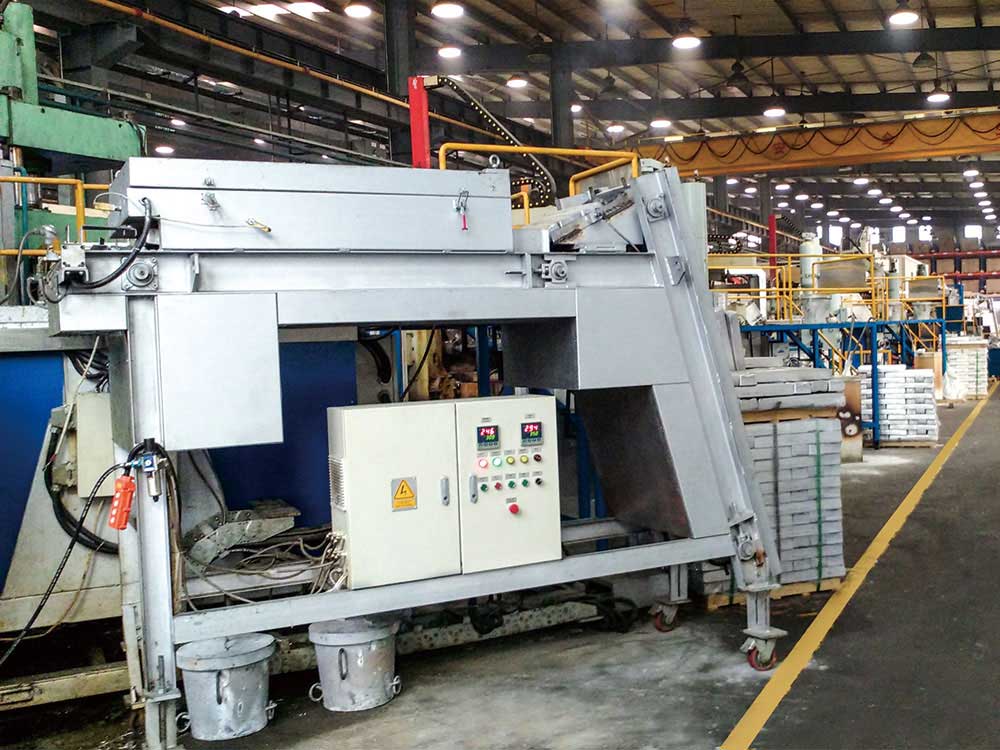

1) The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.

2) Stainless steel casing and panel, corrosion resistant and high temperature resistant (patent: ZL201430063916.2)

3) Quantitative pump instantaneous flow design, maintenance time of more than 30 days (patent: ZL201220249304.8)

4) The transmission tube is made of special corrosion-resistant materials, which can be quickly changed, and the maintenance time is more than 30 days (patent: ZL201120347014.2)

5) Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding (patent: ZL201420137471.2)

6) Anti-blocking magnesium alloy elbow design (patent: ZL201120322157.8)

7) Perfect cleaning tool (patent: ZL201120323381.9)

Feedback

Details

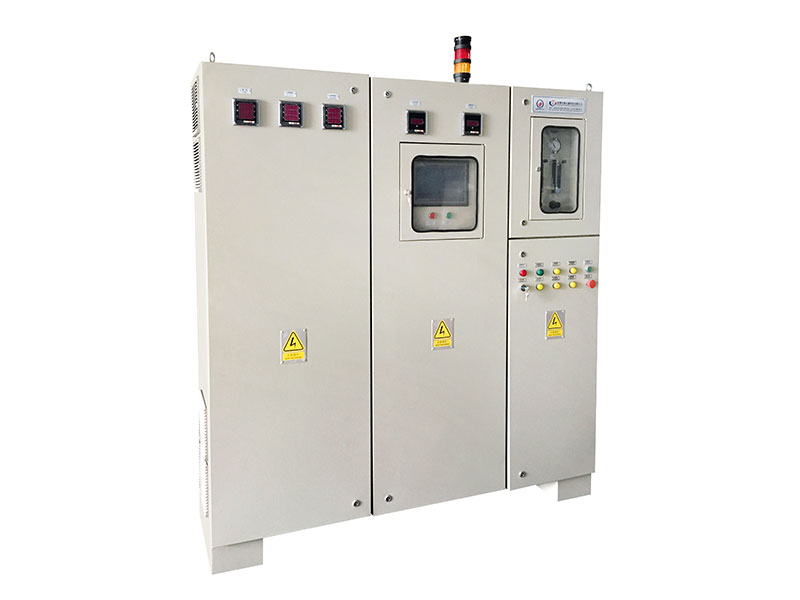

Control System:

1) Using Siemens PLC Control Center, 14' large color touch screen

2) Remote function can be realized

3) Import KOFLOC flow agent to control the flow of gas, save gas and protect crucible

Safety:

1) Gas undervoltage alarm, automatic power failure protection function (patent: ZL201120347026.5) (patent: ZL201120347028.4)

2) Full touch screen real-time monitoring and prompt troubleshooting guide (software copyright)

3) Electrical component protection function (patent design: ZL201120347030.1)

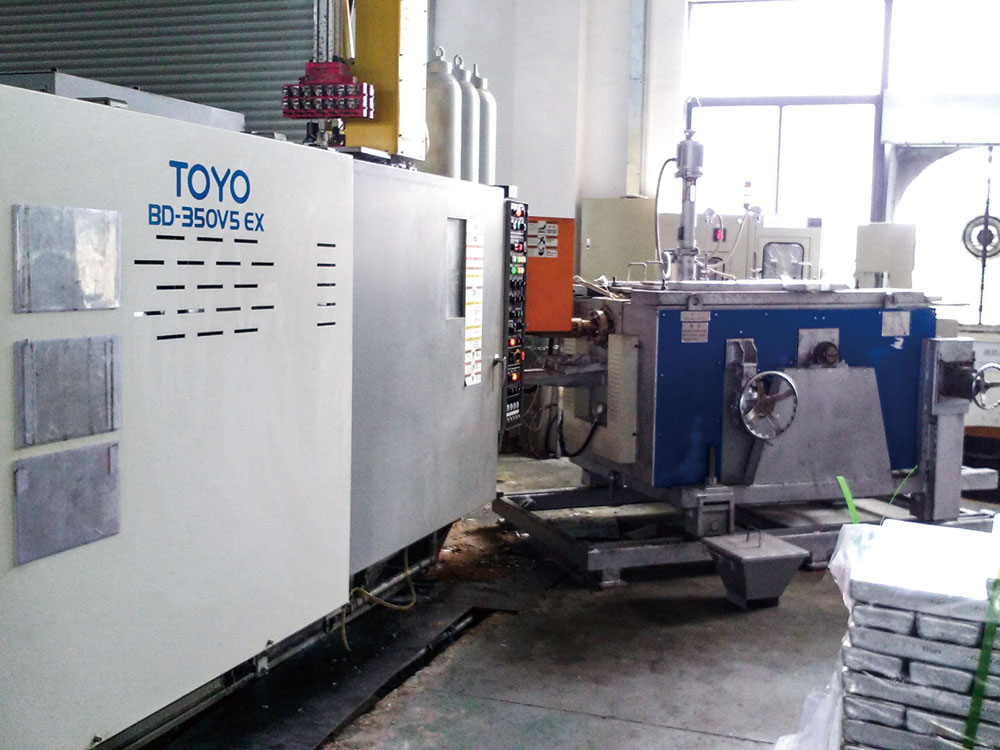

Magnesium alloy die-casting cold room machine furnace DMD-J series parameters

Paramater	Unit	DMD250J	DMD300J	DMD500J	DMD800J	DMD1000J	DMD1200J	DMD1500J
Furnace size (LWH)	Mm	2000800 1000	2750950 1300	3060950 1300	34001000 1900	36501450 2350	37501550 2450	39001550 2550
Rated Volume	Kg	250	350	550	800	1000	1200	1500
Melting rate	Kg/h	80	100	200	300	350	400	450
Crucible structure		Double room
Power	V/Hz/Phase	380-420V/50-60Hz/Three-phase Five-wire
Rated power	KW	60	75	120	180	220	260	300
Rated current	A	90	120	180	270	330	390	450
Highest Furnace working temperature	℃	850
Highest work temperature of magnesium liquid	℃	710
provide gas temperature	℃	350
Transportation pipe temperature	℃	680-720
quantitative way		Centrifugal
Quantitative range	Kg	0.2~5	0.2~5	0.2~5	0.5~10	0.5~10	0.5~20	0.5~20
（max.）Protection gas flow（max.）	L/min	25	25	25	25	50	50	50
Lifting height of lifting frame	mm	150	150	150	150	250	250	250
Lift moving distance	mm	700	700	700	800	800	800	800
DIN45635-01-K1.2 noise	dB(A)	＜85
Preheating power（max.）	KW	20	20	20	30	30	60	60
Preheating temperature	℃	150-250	150-250	150-250	150-250	150-250	150-250	150-250
Furnace weight	Kg	1200	1500	2400	3000	4000	4500	5500
Suitable for die casting machine model	T	≤300	≤400	≤650	≤900	≤1250	≤1250	≤1650

Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
