DMD-M magnesium alloy furnace

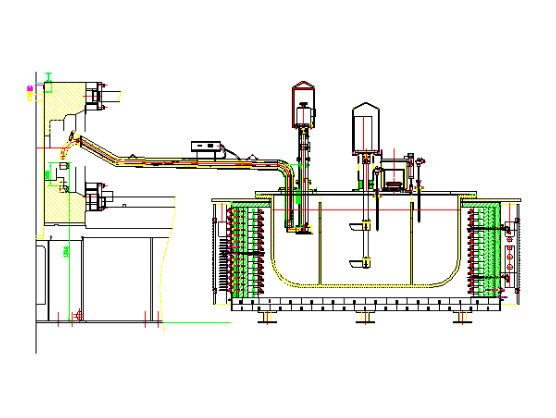

Magnesium alloy furnace structure system:

1) The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.

2) Using a radiant tube or other heating method, the heater can be quickly replaced

3) Stainless steel casing and panel, corrosion resistant, high temperature resistant

4) Imported thermocouple, accurate temperature control and high service life

5) Quantitative pump instantaneous flow design, maintenance time of more than 30 days (patent: ZL201220249304.8)

6) The transmission tube is made of special corrosion-resistant materials, which can be quickly changed, and the maintenance time is more than 30 days (patent: ZL201120347014.2)

7) Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding (patent: ZL201420137471.2)

8) Preheating machine has low energy consumption and good preheating effect

Feedback

Details

Magnesium alloy die-casting cold room machine furnace DMD-M series parameters

Paramater	Unit	DMD250M	DMD300M	DMD500M	DMD800M	DMD1000M	DMD1200M	DMD1500M
Furnace size(LWH)	Mm	2000800 1000	2750950 1300	3060950 1300	34001000 1900	36501450 2350	36501450 2350	36501450 2350
Rated Volume Volume	Kg	250	350	550	800	1100	1200	1500
Melting rate	Kg/h	80	100	200	250	300	400	450
Crucible structure		Double room	Double room	Double room	Double room	Double room	Double room	Double room
Power	V/Hz/Phase	380-420V/50-60Hz/Three-phase Five-wire
Rated power	KW	60	75	120	180	220	260	300
Rated current	A	90	120	180	270	330	390	450
Highest Furnace working temperature	℃	850
Highest work temperature of magnesium liquid	℃	710
provide gas temperature	℃	350
Transportation temperature	℃	680-720
quantitative way		Centrifugal
Quantitative range	Kg	0.2~5	0.2~5	0.2~5	0.5~10	0.5~10	0.5~20	0.5~20
（max.）Protection gas flow（max.）	L/min	25	25	25	25	50	50	50
Lifting height of lifting frame	mm	150	150	150	150	150	250	250
Lift moving distance	mm	300	300	300	300	300	500	500
PIPE of rotation of lifting frame	°	±60
DIN45635-01-K1.2 noise	dB(A)	＜85
Preheater power	KW	20	20	20	30	30	60	60
Furnace weight	Kg	1200	1500	2400	3000	4000	4500	5500
Suitable for die casting machine model	T	≤300	≤400	≤650	≤900	≤1250	≤1250	≤1650

Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
